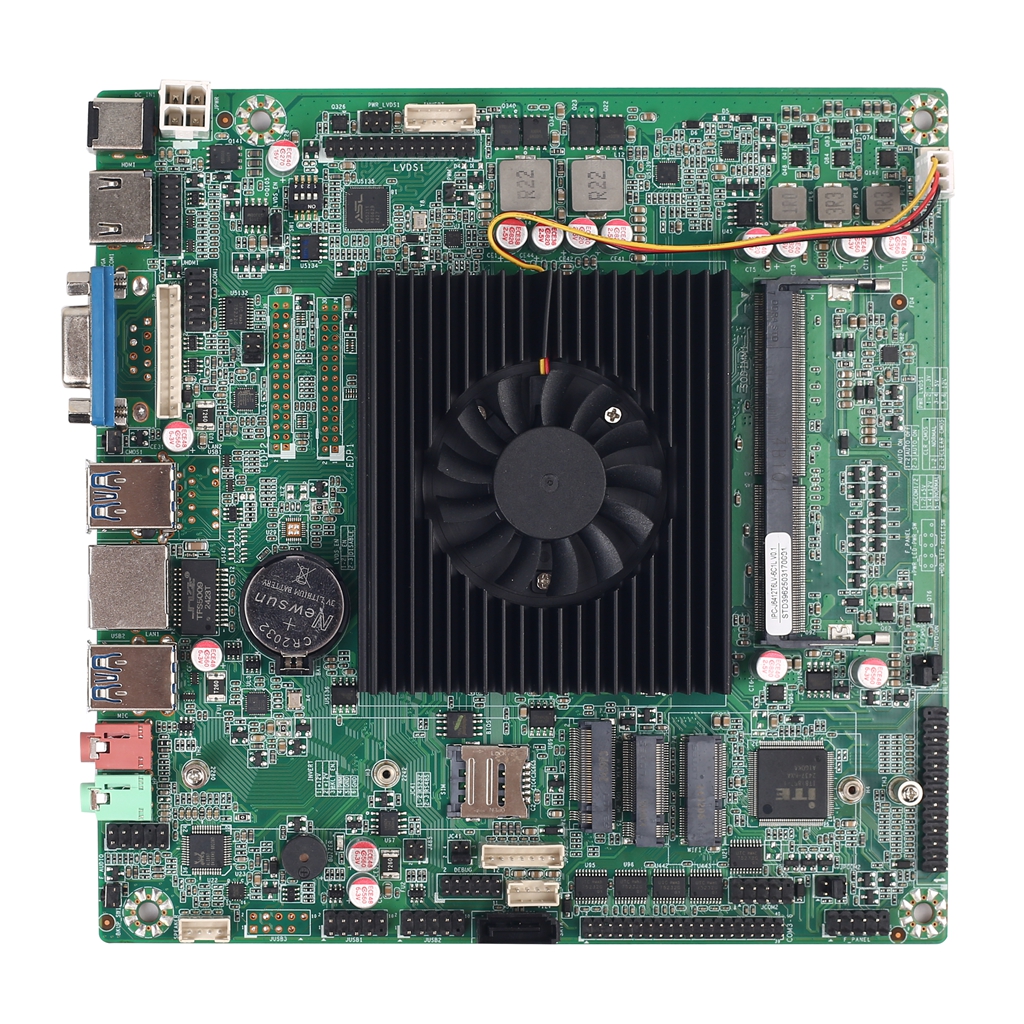

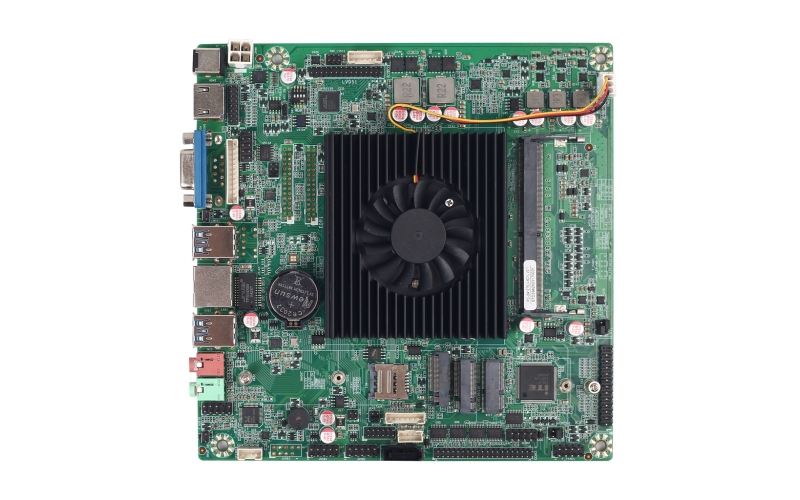

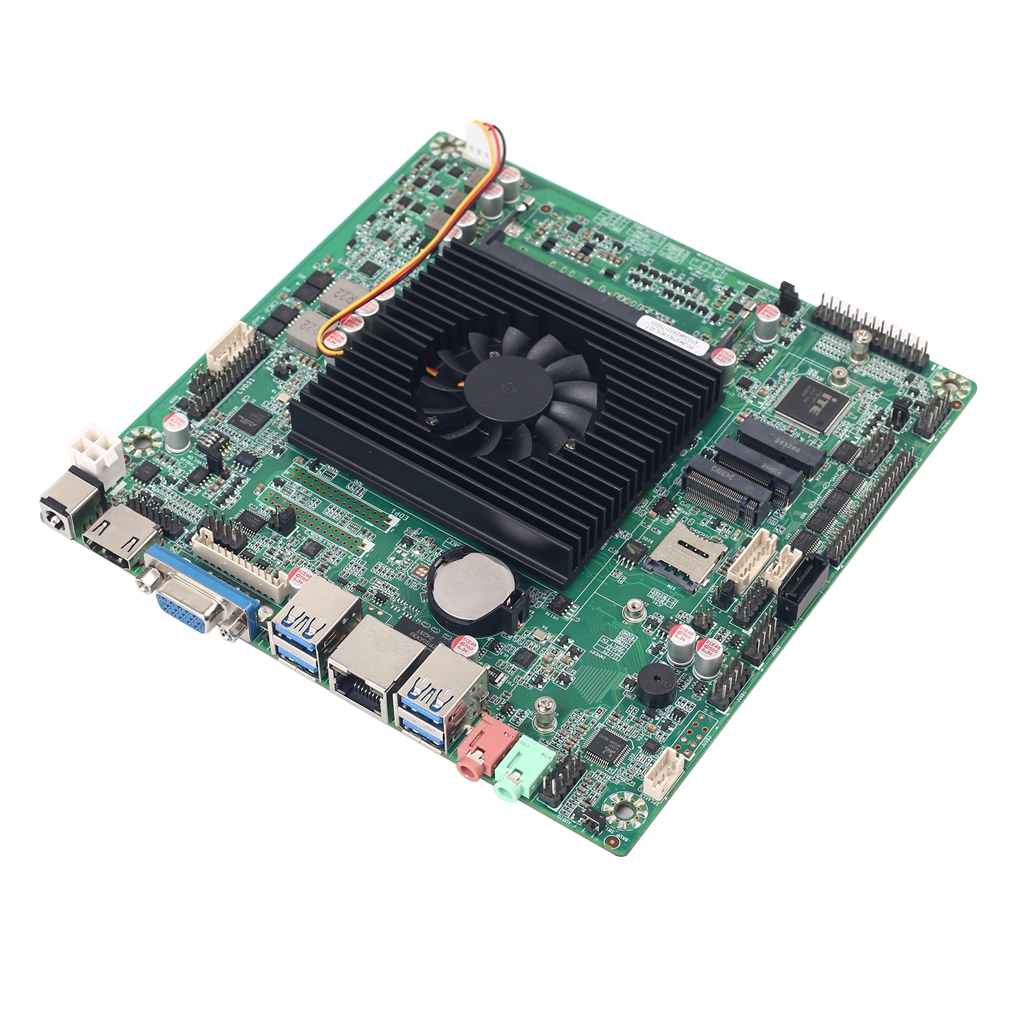

◆Intel Celeron J6412 processor with turbo frequency up to 2.60 GHz
◆1*DDR4 3200 SO-DIMM內存，最大支持32GB
◆1*VGA，1*HDMI，1*LVDS支持雙屏同步/異步顯示
◆4*USB3.1，4*USB2.0，6*COM（可選2*COM）
，1*LPT，1*RJ45LAN，1*SATA3.0
◆支持網絡喚醒、無盤引導、定時開機功能）
◆適用于零售、一體機、客戶機等行業
◆Intel Celeron J6412 processor with turbo frequency up to 2.60 GHz
◆1*DDR4 3200 SO-DIMM內存，最大支持32GB
◆1*VGA，1*HDMI，1*LVDS支持雙屏同步/異步顯示
◆4*USB3.1，4*USB2.0，6*COM（可選2*COM），1*LPT，1*RJ45LAN，1*SATA3.0
◆1*M.2_SATA(NVME/SSD自適應) 1*M.2-PCIE(WIFI+BT/5G)
◆支持網絡喚醒、無盤引導、定時開機、GPIO功能
◆適用于零售、一體機、瘦客戶機等行業
| General | |
| CPU | Intel Celeron J6412 processor with turbo frequency up to 2.60 GHz |
| Memory | 1*DDR4 3200MHz,Up to 32GB |
| Storage | 1*SATA3.0 Port |
| Expansion Slot | 1*M.2 SATA/NVME(SSD self-adaptation) 1*M.2-PCIE(WIFI+BT/5G) |
| BIOS | AMI BIOS |
| OS | Windows 10/11, Linux |
| I/O | |
| Ethernet | 2*Realtek RTL8111H (10/100/1000Mbps) |
| Audio | 1*Realtek ALC897 |
| USB | 4*USB3.1 4*USB2.0 |
| COM | 6*COM(Option 2COM) |

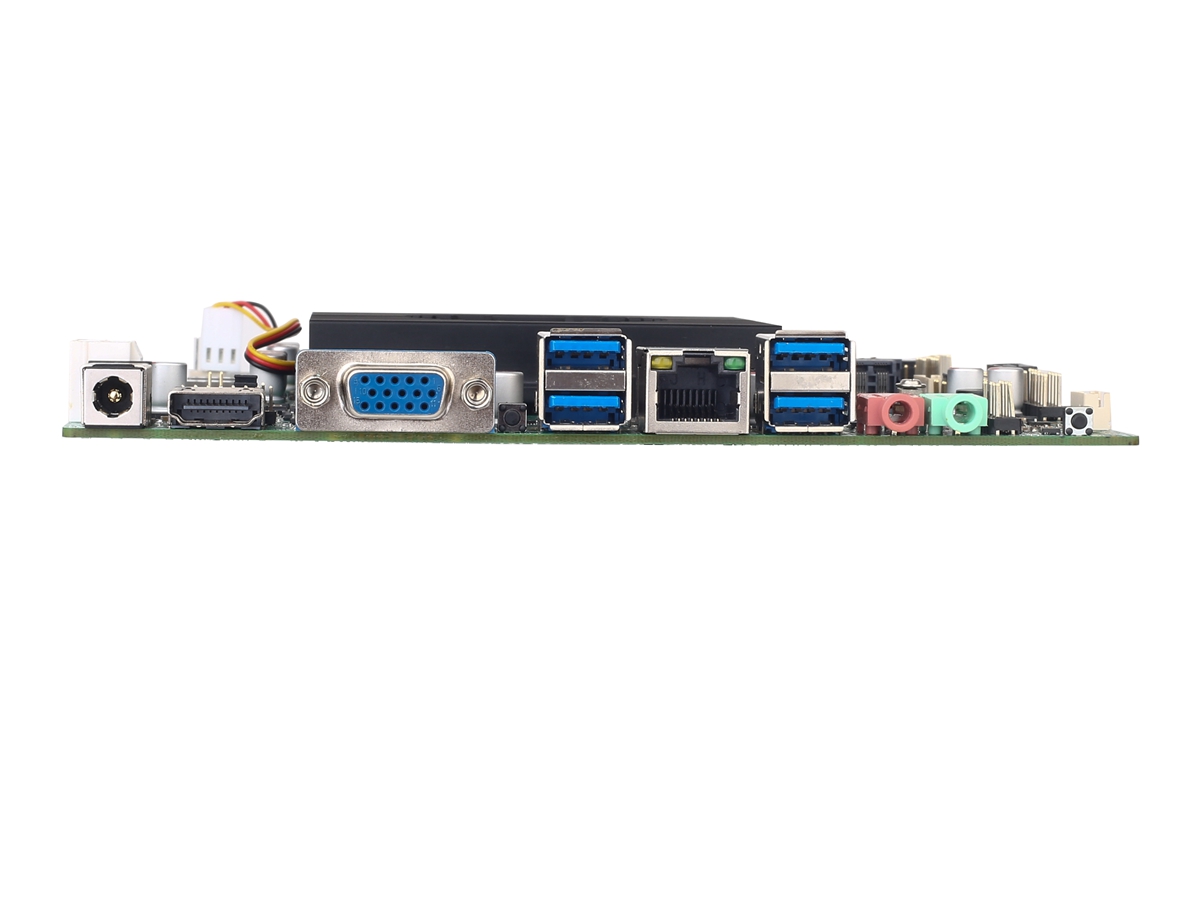

| I/O Connectors | 1*DC 1*HDMI 1*VGA 1*CMOS1 1*USB3.1(Two USB ports in one group) 1*LAN 1*USB3.1(Two USB ports in one group) 1*Mic 1*Lineout 1*F_Audio 1*BKUP_SW1 |
| Headers | 6*COM Headers 2*USB2.0 Header 1*LVDS(Option EDP) 2*JPCOM 1*JC41 1*FAN 1*3W Amplifier 1*LPT 1*PWR_LVDS 1*F_PANEL 1*PS/2 1*SATA_PWR 1*J485 1*CLR_CMOS 1*AUTO_ON |
| Display | |
| Display Interface | 1*VGA :max resolution up to 1920x1200@60Hz 1*LVDS: max resolution up to 1920x1200@60Hz 1*HDMI: max resolution up to 3840*2160@60Hz |
| Multiple Display | triple |
| Mechanical & Environment | |
| Dimension | 170*170mm |
| DC Power | DC 12V5A-12V10A |
| Temperature | Storage:-20~75℃ Operation:-15~60℃ |
| Relative Humidity | 5%~90%, non-condensing |
| NO. | 驅動類型 | 系統及位數 | 下載鏈接1 | 備用下載鏈接 | 備注 |
| 1 | Chipset | Windows_10_x64 | Link 1 | Link 2 | |
| 2 | LAN | Windows_10_x64 Windows_11_x64 | Link 1 | Link 2 | |
| 3 | VGA | Windows_10_x64 | Link 1 | Link 2 | |
| 4 | Audio | Windows_10_x64 | Link 1 | Link 2 | |
| 5 | Intel Serial IO | Windows_10_x64 | Link 1 | Link 2 | |
| 6 | Intel Management Engine | Windows_10_x64 | Link 1 | Link 2 | |
| 7 | Intel SST | Windows_10_x64 | Link 1 | Link 2 |
T6412T6LV-6C1L-中性_20250515145738.pdf
