◆Intel® Core Ultra 125H/155H/185H/255H/285H
◆Up to LPDDR5/x 8400 MT/s, 64GB
◆1*HDMI 4096 x 2304 @ 60Hz 1*DP 4096 x 2304 @ 60Hz 2*Intel® Thunderbolt™ 4
◆2*Thunderbolt™ 4 ports (2 x USB Type-C®) 4*USB 3.2 Gen 2 10Gbps
1 * USB 2.0 3*MINISAS36P(4*SATA3) 1 x PCIe 5.0 x8 slots
◆2*Marvell® 10Gb LAN controller
◆1*M.2（PCIE3.0×4）
◆適用于NAS行業(yè)
◆Intel? Core Ultra 125H/155H/185H/255H/285H
◆Up to LPDDR5/x 8400 MT/s, 64GB
◆1 * HDMI 4096 x 2304 @ 60Hz
1 * DP 4096 x 2304 @ 60Hz
2 * Intel? Thunderbolt? 4
◆2*Thunderbolt? 4 ports (2 x USB Type-C?)
4*USB 3.2 Gen 2 10Gbps
1 * USB 2.0
3*MINISAS36P(4*SATA3)
1 x PCIe 5.0 x8 slots
◆2*Marvell? 10Gb LAN controller
◆1*M.2（PCIE3.0×4）
◆適用于NAS行業(yè)
| General | |
| CPU | Intel? Core Ultra 125H/155H/185H |
| Memory | Up to LPDDR5/x 8400 MT/s 5, 64GB |
| Storage | 2*M.2 (PCIE4.0×4) 12*SATA (6Gb/s) |
| Expansion Slot | 3*MINISAS36P(4*SATA3) 1xPCIe 5.0 x8 slots |
| BIOS | AMI BIOS |
| OS | Windows 10/11, Linux |
| I/O | |
| Ethernet | 2*Marvell? 10Gb LAN controller |
| USB | 2*Thunderbolt? 4 ports(2xUSB Type-C?) 4*USB 3.2 Gen 2 10Gbps 1*USB 2.0 |

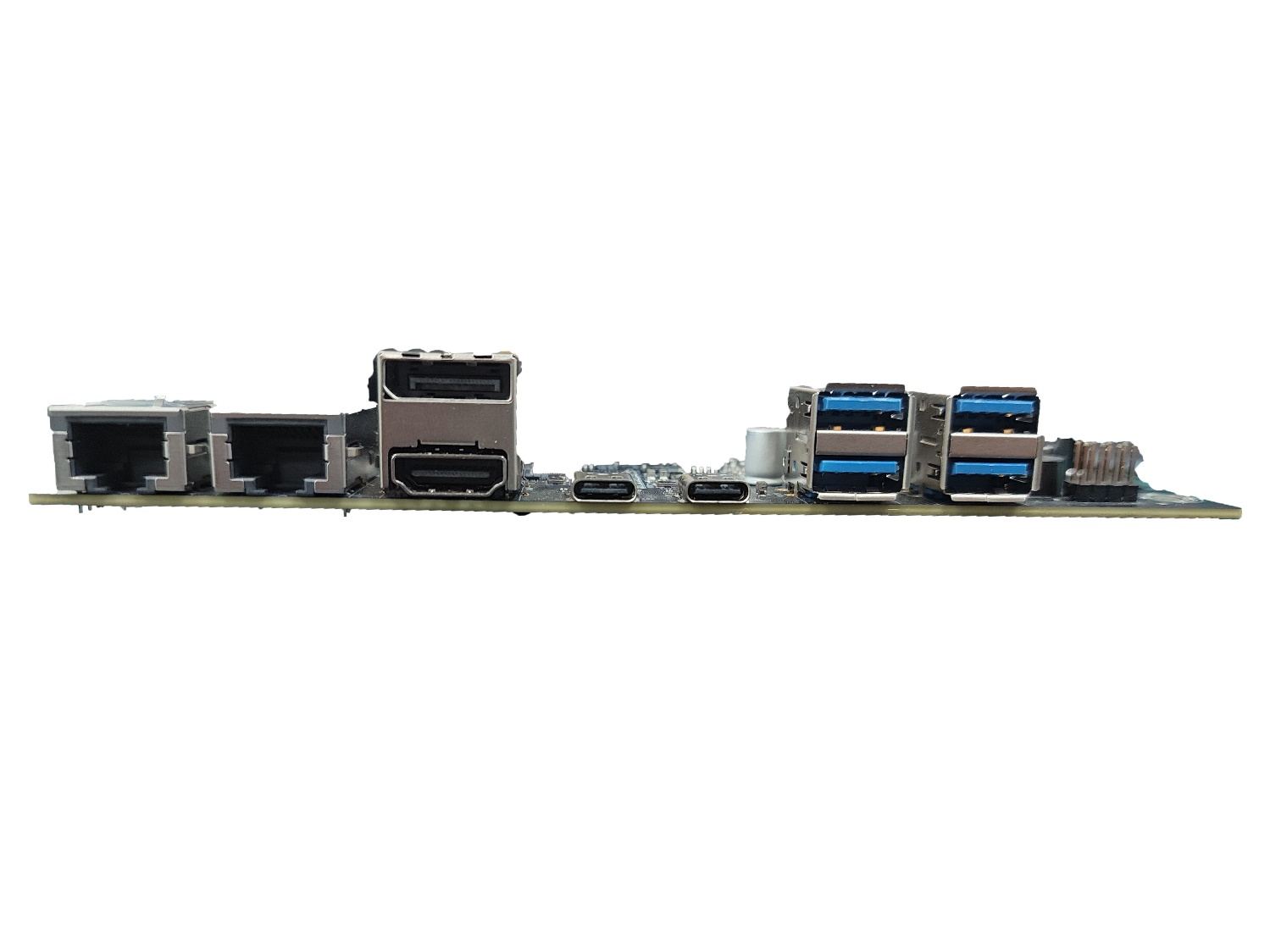

| I/O Connectors | 1*HDMI 1*DP 4*USB3.2 10Gbps 2*Thunderbolt? 4 ports 2*Marvell? 10Gb LAN controller |
| Headers | 2*SYS_FAN 1*CPU_FAN 1*FPANEL 1*CLR_MOS 1*F_USB1 1*JDB1 1*JP1 1*JUART1 1*F_BT 1*ATX_PWR(24PIN) |
| Display | |
| Display Interface | 1*HDMI 4096x2304@60Hz 1*DP 4096x2304@60Hz 2*Intel?Thunderbolt? 4 |
| Mechanical & Environment | |
| Dimension | 170*170mm |
| DC Power | 24-pin main power connector |
| Temperature | Storage:-20~70℃ Operation:0~45℃ |
| Relative Humidity | 5%~90%, non-condensing |
| NO. | 驅動類型 | 系統(tǒng)及位數 | 下載鏈接1 | 備用下載鏈接 | 備注 |
| 1 | Chipset | Windows_10_x64 | Link 1 | Link 2 | |
| 2 | LAN | Windows_10_x64 Windows_11_x64 | Link 1 | Link 2 | |
| 3 | VGA | Windows_10_x64 | Link 1 | Link 2 | |
| 4 | Audio | Windows_10_x64 | Link 1 | Link 2 | |
| 5 | Intel Serial IO | Windows_10_x64 | Link 1 | Link 2 | |
| 6 | Intel Management Engine | Windows_10_x64 | Link 1 | Link 2 | |
| 7 | Intel SST | Windows_10_x64 | Link 1 | Link 2 |
YJ7506X.pdf
