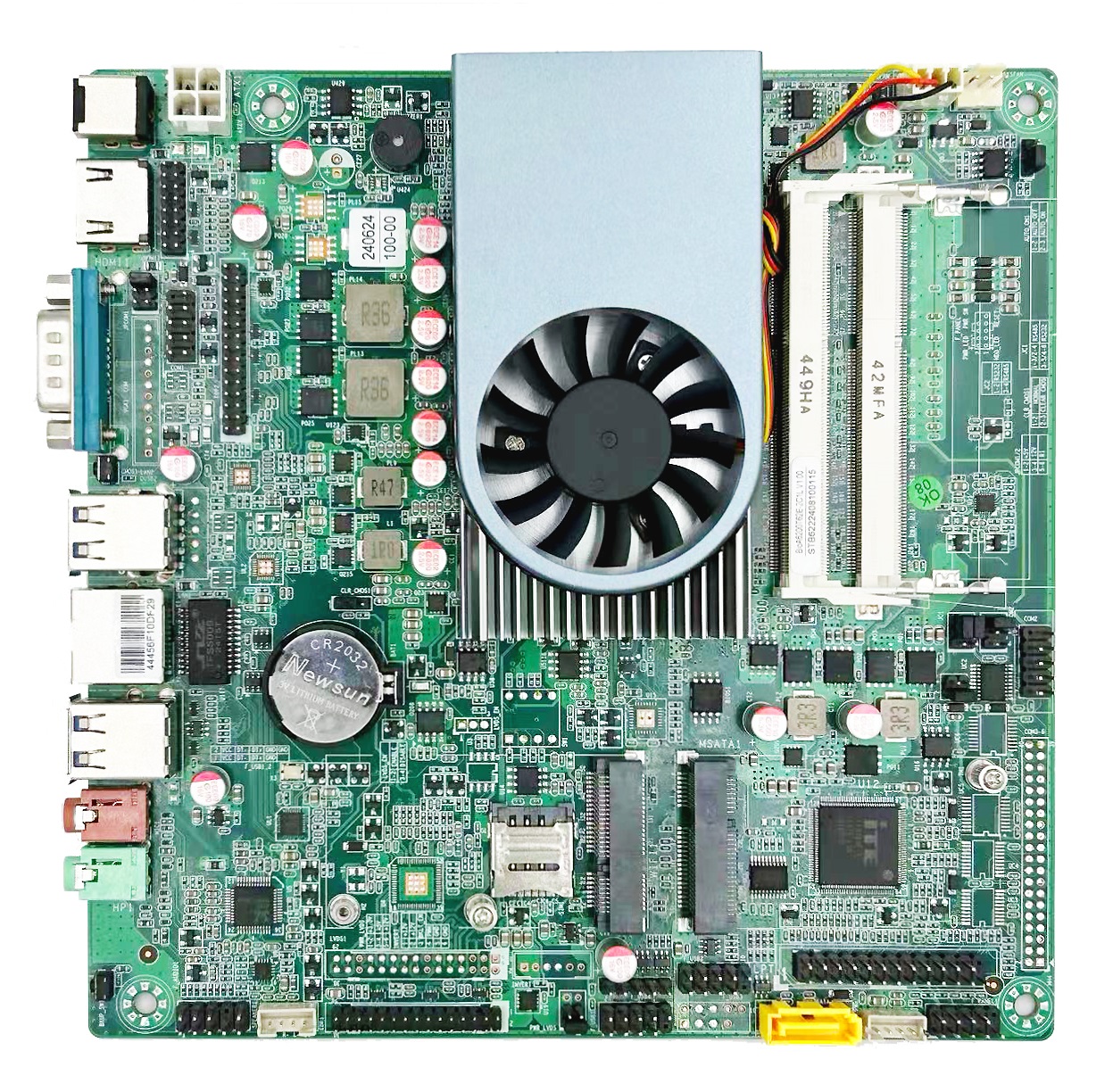

◆Intel® skylaKe-U Core™ I5 6200U 2.3GHZ
◆1*DDR3L 1600 SO-DIMM內存，最大支持32GB
◆1*HDMI、2*EDP支持3屏同步/異步顯示
◆4*USB3.0，5*USB2.0，2*COM，1*LPT，1*RJ45LAN，1*SATA3.0
◆1*MSATA（self-adaption） 1*M.2-PCIE(WIFI+BT/4G)
◆支持網絡喚醒、無盤引導、定時開機、GPIO功能
◆適用于零售、一體機、客戶機等行業
◆Intel? skylaKe-U Core? I5 6200U 2.3GHZ
◆1*DDR3L 1600 SO-DIMM內存，最大支持32GB
◆1*HDMI、2*EDP支持3屏同步/異步顯示
◆4*USB3.0，5*USB2.0，2*COM，1*LPT，1*RJ45LAN，1*SATA3.0
◆1*MSATA（self-adaption） 1*M.2-PCIE(WIFI+BT/4G)
◆支持網絡喚醒、無盤引導、定時開機、GPIO功能
◆適用于零售、一體機、客戶機等行業
| General | |
| CPU | Intel ? Core ? i5-6200U processor |
| Memory | 2*DDR3L 1600MHz,Up to 32GB |
| Storage | 1*SATA3.0 Port |
| Expansion Slot | 1*MSATA 1*M.2-PCIE(WIFI+BT/5G) |
| BIOS | AMI BIOS |
| OS | Windows 10/11, Linux |
| I/O | |
| Ethernet | 1*Realtek RTL8111H (10/100/1000Mbps) |
| Audio | 1*Realtek ALC897 |
| USB | 4*USB3.0 5*USB2.0 |
| COM | 6*COM |

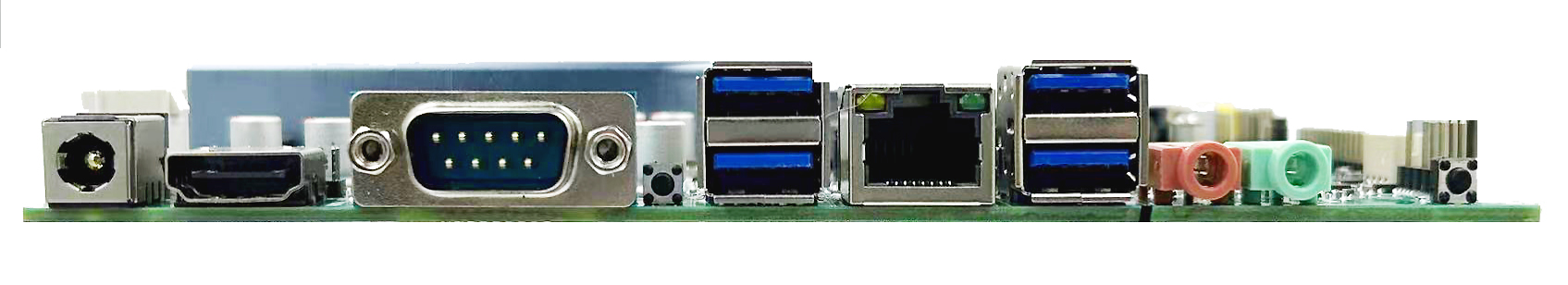

| I/O Connectors | 1*DC 1* HDMI 1*VGA/COM(Either-or) 1*USB3.0(Two USB ports in one group) 1*LAN 1*USB3.0(Two USB ports in one group) 1*Mic 1*Lineout |
| Headers | 2*COM Headers 5*USB2.0 Header 1*EDP(Option LVDS) 2*JPCOM 1*DP2 2*FAN 1*3W Amplifier 1*LPT(OUT OF LPT Connector) 1*JC2 1*PWR_LVDS 1*F_PANEL 1*CLR_CMOS 1*AUTO_ON |
| Display | |
| Display Interface | 2*EDP1/EDP2(either-or): max resolution up to 1920*1200 1*HDMI: max resolution up to 2560*1440 60HMZ (Can do EDP1+HDMI+VGA)(Can do LVDS+HDMI+EDP2)(Can do LVDS+HDMI+VGA) |
| Multiple Display | triple |
| Mechanical & Environment | |
| Dimension | 170*170mm |
| DC Power | DC 12A |
| Temperature | Storage:-20~75℃ Operation:-15~60℃ |
| Relative Humidity | 5%~90%, non-condensing |
| NO. | 驅動類型 | 系統及位數 | 下載鏈接1 | 備用下載鏈接 | 備注 |
| 1 | Chipset | Windows_10_x64 | Link 1 | Link 2 | |
| 2 | LAN | Windows_10_x64 Windows_11_x64 | Link 1 | Link 2 | |
| 3 | VGA | Windows_10_x64 | Link 1 | Link 2 | |
| 4 | Audio | Windows_10_x64 | Link 1 | Link 2 | |
| 5 | Intel Serial IO | Windows_10_x64 | Link 1 | Link 2 | |
| 6 | Intel Management Engine | Windows_10_x64 | Link 1 | Link 2 | |
| 7 | Intel SST | Windows_10_x64 | Link 1 | Link 2 |
IPC-6200T62E-2C1L V1.00.pdf
